ROBOTUFT

All settings of Robot

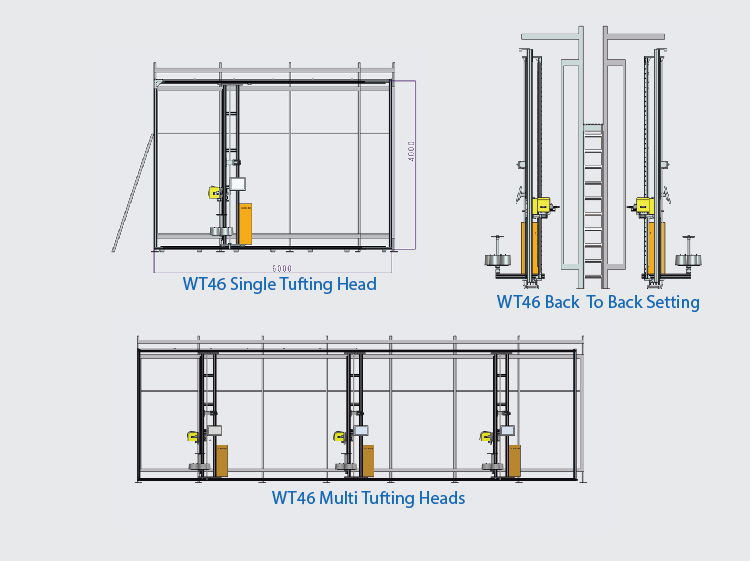

WT46--Single Head
Axis：5 axis
Voltage：220V 50hz
Power：3.0kw(Single)
Tufting Area：4500mm(Length)X3100mm(Height)
Machine Size：6000(L)X2500(W)X4200(H)mm
Factory Height Requirement: above 4500mm


WT46-Multi-tufting Heads
Axis：5 axis
Voltage：220V 50hz
Power:3.0kw*N N= sets of robots
Tufting Area：N*6000-1000mm(Length)X3100mm(Height)；N= sets of robots
Machine Size: 6000(L)X2500(W)X4000(H)mm Length=6000*N N= sets of robots
Factory Height Requirement: above 4500mm



Robot specifications


Pile height：Cut plie:6-15mm Loop pile:3-15mm
Tufting density：
Adjustable range of needle distance:1-10mm Min. range of spacing:2mm
Yarn material：Acrylic fiber, wool,bamboo fiber, silk yarn, cotton etc.
Productivity:
No yarn color limit; Max speed of tufting:2000 stitch/min;
Simple design(geometric with few colors): 3m²/h
Complicated design(small area with many colors):0.8-1.5m²/h

Robot Improvement

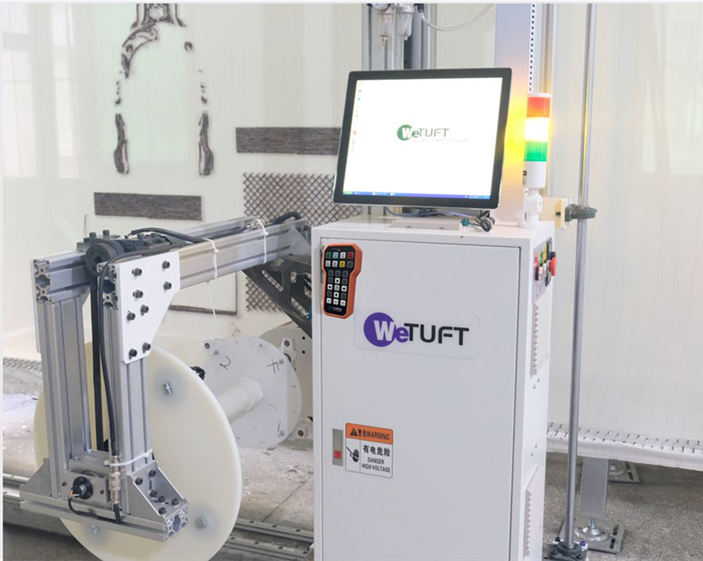

1. Electrical cabinet and control panel with HMI (Human Machine Interface) software in  English, Chinese;
2. It has 6 yarn sensors and the robot will stop immediately once the yarn breaks;
3. Flexibly operating interface, and esay learning;
4. Robot running base on Windows 10 system;
5. Wireless Remote Assistance: HMI will keep updating once we get some upgardes.



Robotuft Performance

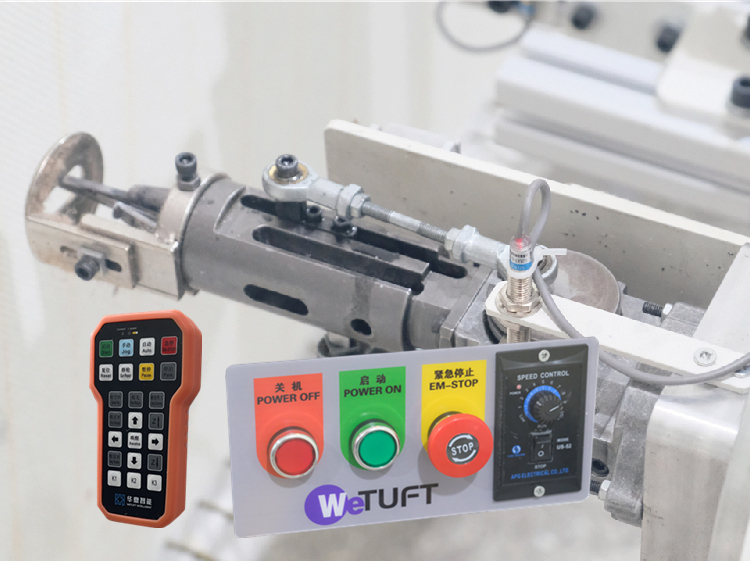

1. Wireless Remote Controller, improving the machine operator’s efficiency, HMI can be operated from different spots which also  can be controlled by 'Machine control' page;
2. Yarn mixing function for gradient color;
3. Yarn mixing speed can be adjusted;
4. Different color control buttons for easy operating;
5. Traditional Tufting Head:
Easy for operators and hand tufting workers;
Easy for tufting gun repairing and adjusting;
Fortified tufting head, More durable
